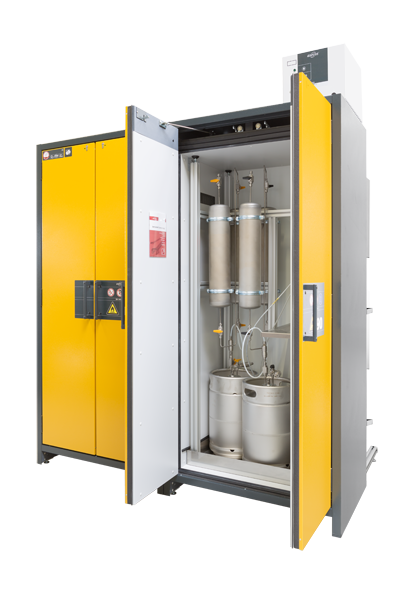

GS Solvent Purification





GS Solvent Purification

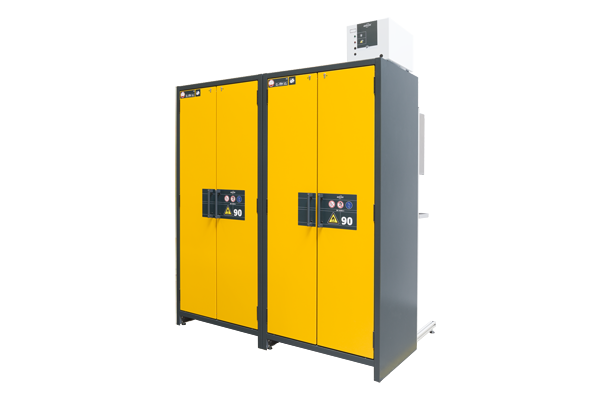

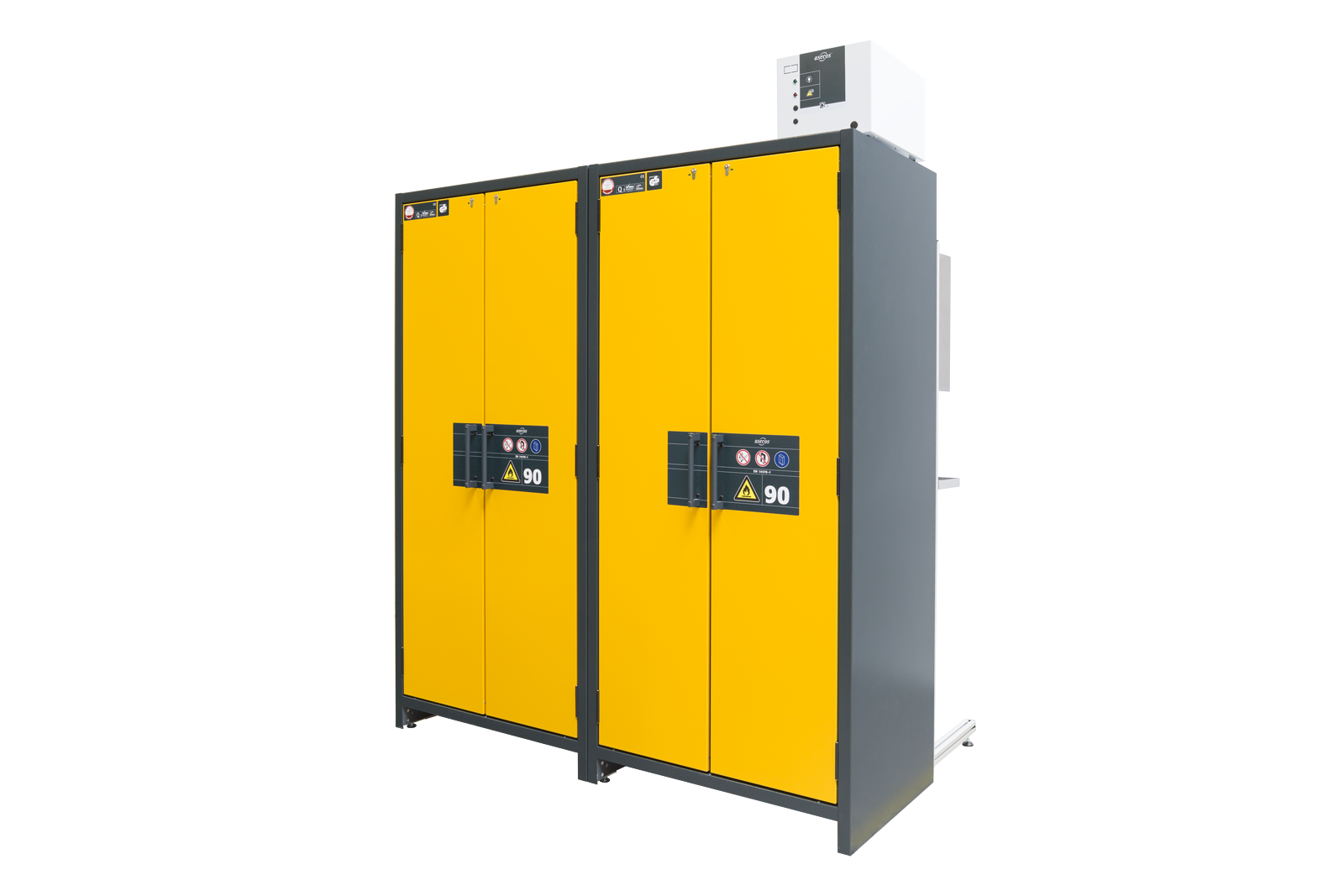

Safety cabinet

  • Safety cabinet type 90 according to DIN EN 14470-1 and 14727
  • GS certified and CE compliant
  • For solvent purification with up to 7 different solvents
  • Equipped with fire proofed feedthroughs
  • Bottom collecting sump
  • Optional: Alarm system for exhaust
  • Optional: Fan filter unit

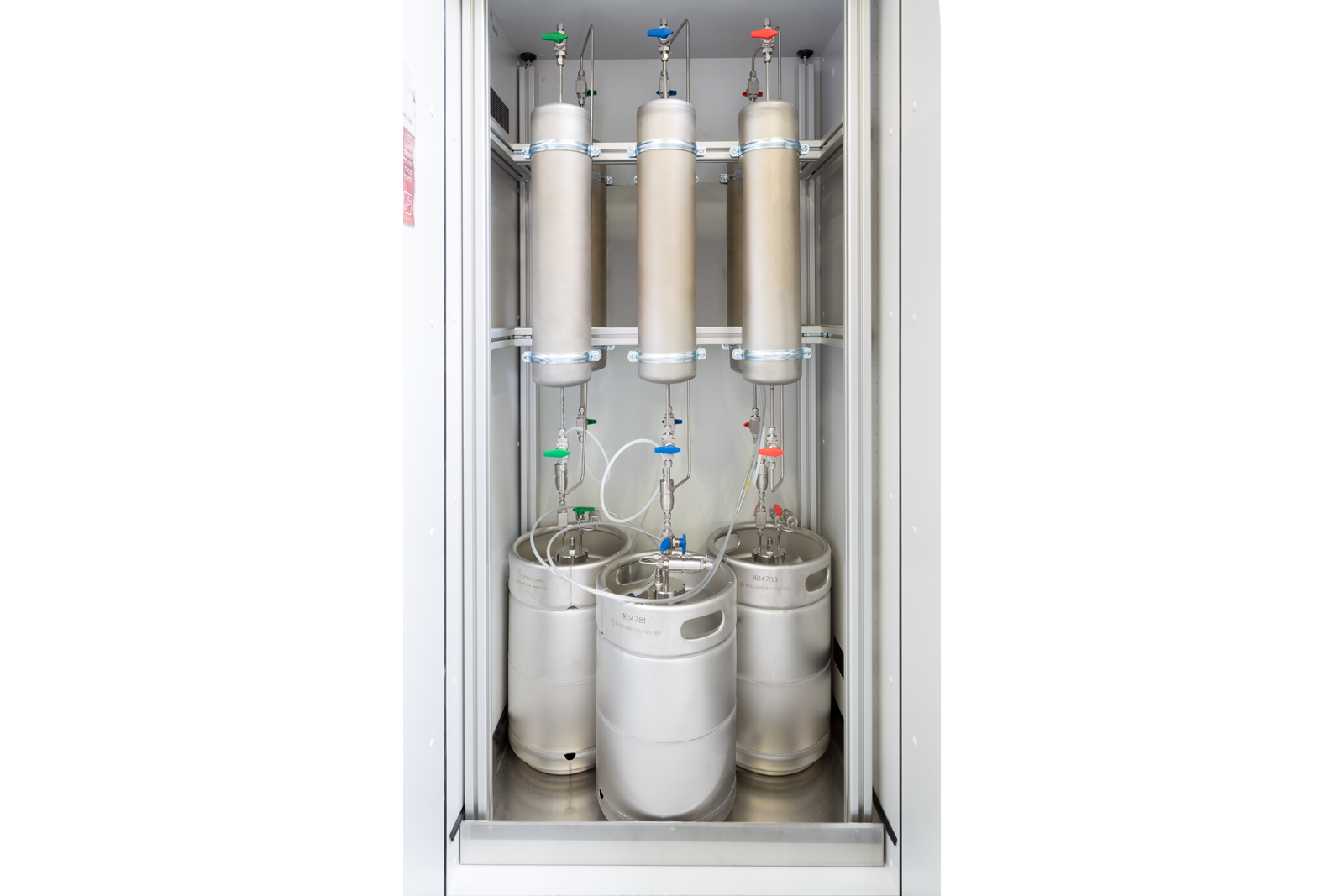

Purification columns

  • High efficient solvent drying depending on type and starting grade
  • High safety standard due to full integration into the safety cabinet
  • Stainless steel 1.4301 (AISI 304) container
  • Double row arrangement for purification columns
  • Different filter materials for an optimized drying of solvents
  • Extra long exchanging intervals with filter capacities up to 800 l
  • No cross contaminations of solvent vapors
  • Flow control adjustable
  • Working gas (N2 or Ar) between 0,3 and 0,5 bar
  • Easy maintenance

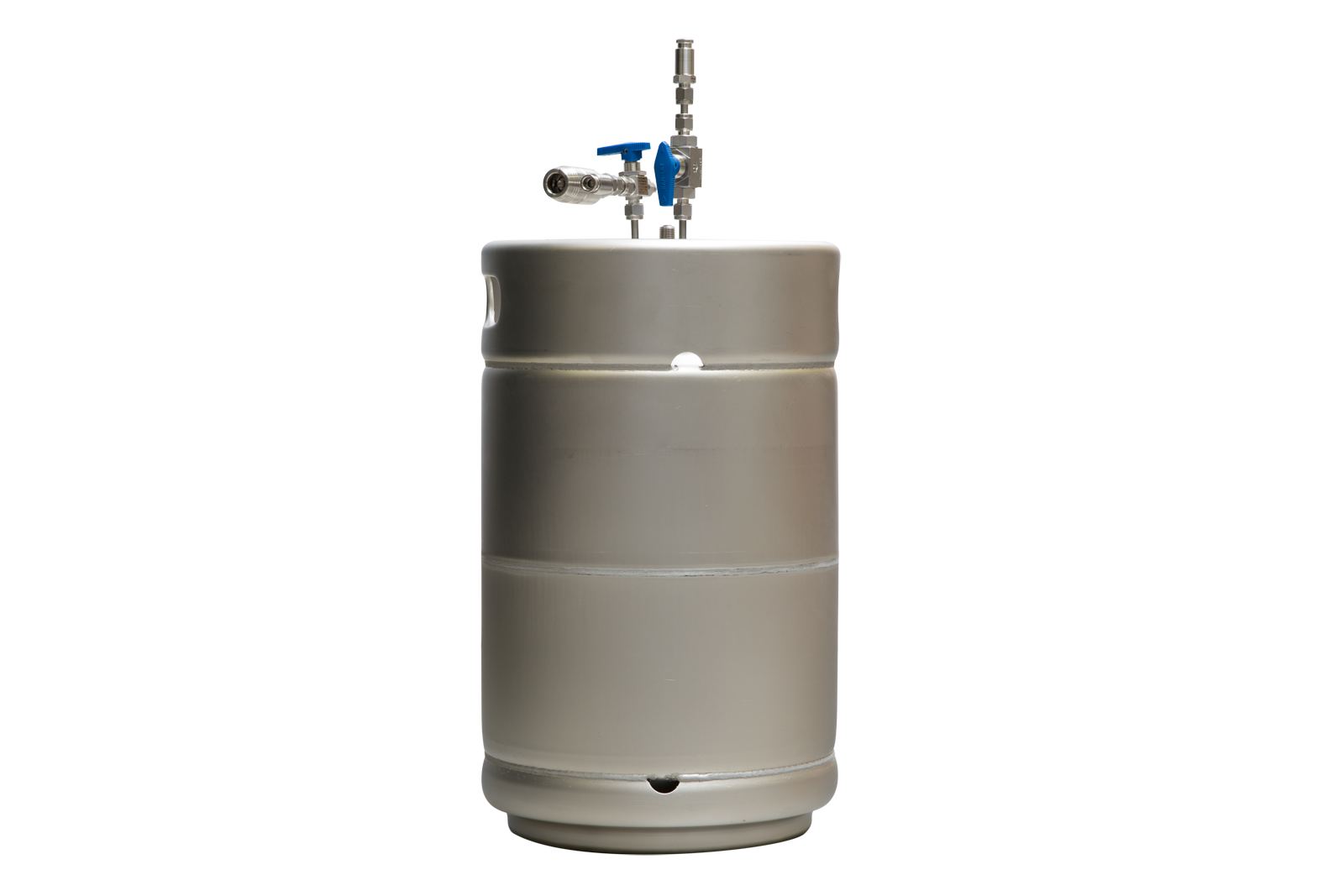

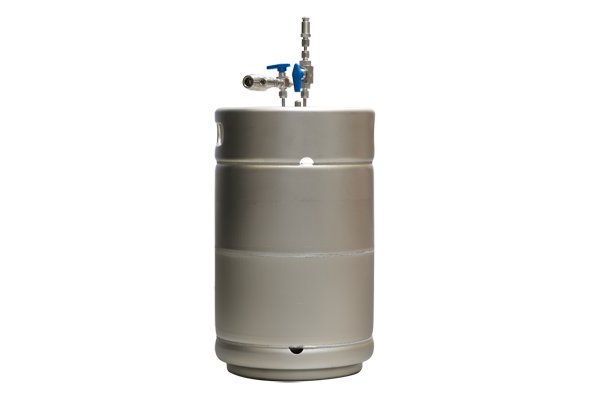

Reservoir for solvents

  • Volume: 18 l, further sizes on request
  • Stainless steel 1.4301 (AISI 304)
  • Leak tight cover
  • Pressure relief valve
  • PTFE tightened quick-connect couplings

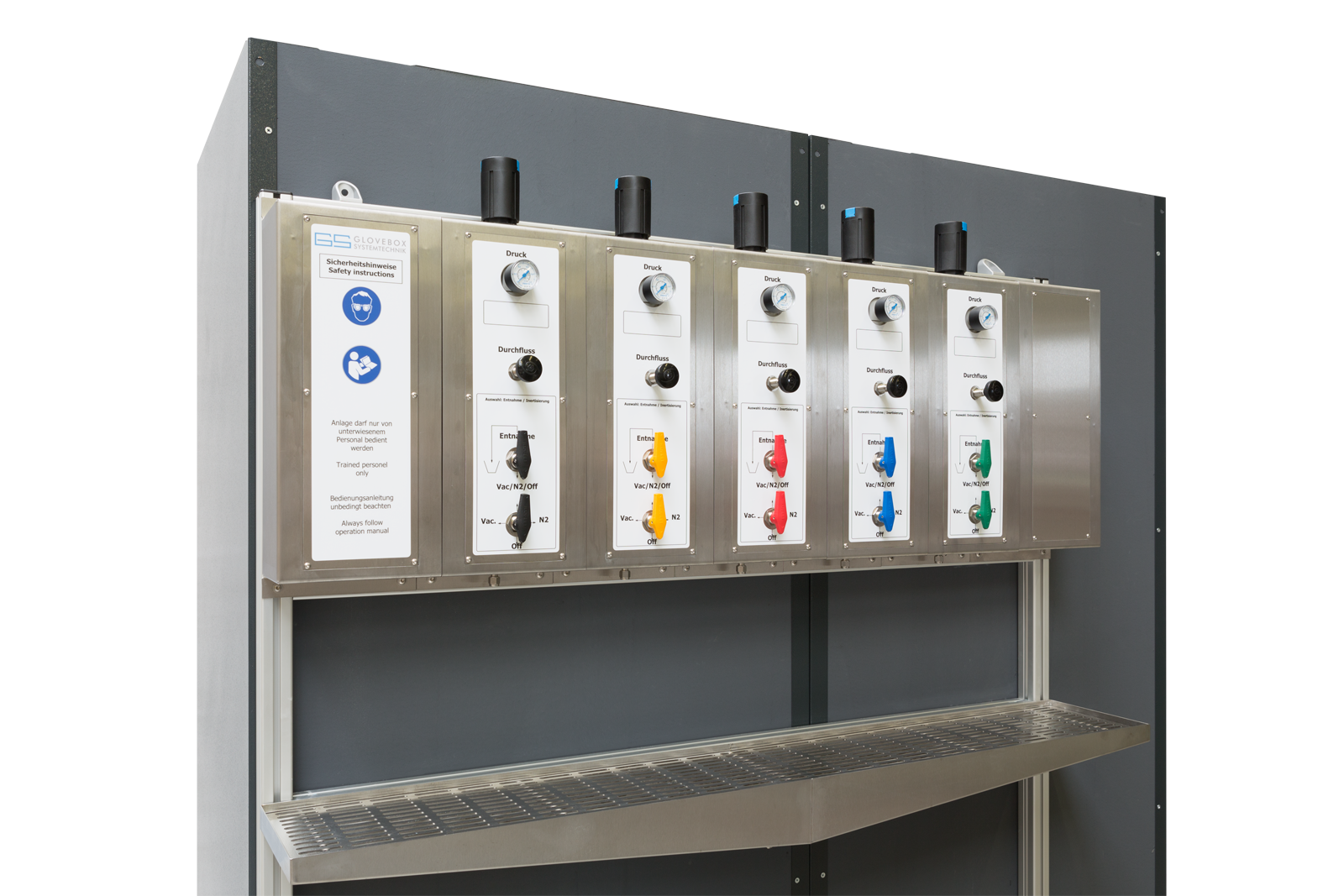

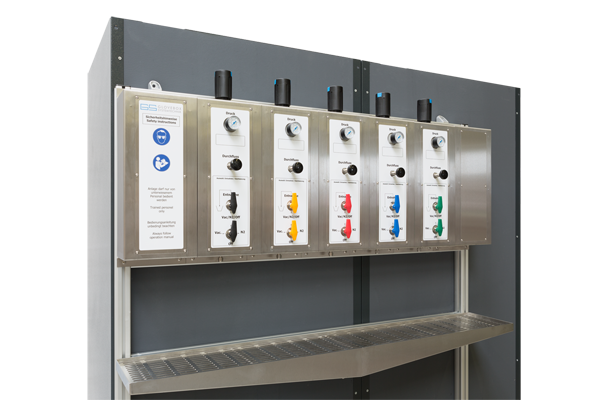

Extraction station

  • Dry solvents inside the glovebox
  • Fast and easy access outside of the glovebox
  • Diaphragm-pump
  • Easy to handle, intuitive operation





Please click on an image for an enlarged view.
